Compatible Pump
Auto-setup, ultra quiet, and safety built-in. The essential alternating pump that works smarter.
Auto-setup, ultra quiet, and safety built-in. The essential alternating pump that works smarter.
Adaptive mode provides targeted pressure therapy to relieve vulnerable areas and aid recovery, while Max Inflation mode creates a firm, stable base that makes moving, sitting up, or receiving care safer and more comfortable.
The EP10AU is lightweight and easy to mount at the foot of the bed. Its low-noise motor supports a calmer environment, helping patients rest without disturbance.
During a power interruption, SafeHold™ stabilises mattress cell pressures and powers down safely to protect the client without carer intervention. Built-in audible and visual alarms alert carers to low pressure or disconnections, ensuring therapy remains consistent and worry-free.
Quick-start inflation restores therapy fast after setup or Max Inflation use, reducing downtime for carers. A durable build and easy-clean design make the EP10AU ideal for everyday use in both homecare and clinical settings.

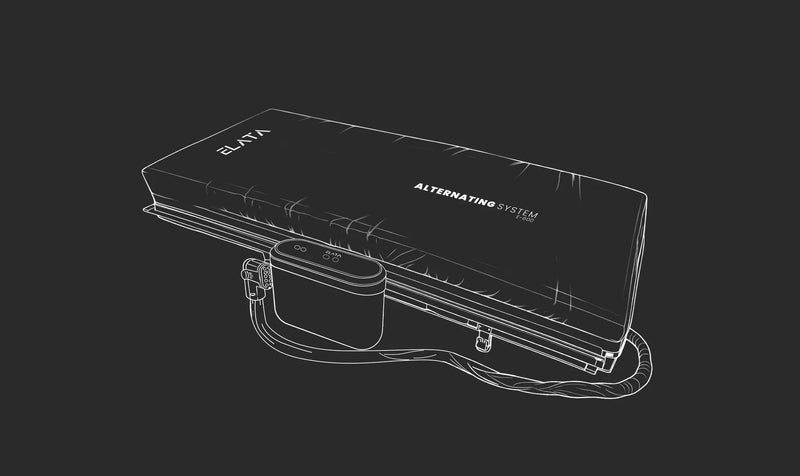

E600 is chosen when patients are at very high risk and consistent pressure relief is essential. Purpose-built for complex care environments, it delivers responsive alternating air support that protects vulnerable areas while maintaining a stable, cushioned surface. Static head support, secure air connections, and reinforced side stability contribute to a safer, more controlled care environment. Durable, dependable, and straightforward to set up, the E600 provides trusted performance for clinicians managing high-acuity risk without unnecessary complexity.
Complete air cell mattress system for maximum pressure redistribution in acute care settings.
Static Cells Head Area
Designed to provide gentle pressure care for the head.
20 Transverse Air Cells
Multi-layered TPU, noise-reducing air cells combine alternating and static zones for continuous relief and protection.
Self-Sealing Connections
Isolate a punctured cell or create a zero pressure zone for targeted relief.
Accessible Handles
To ensure easy control / transport.
Cable Tidy
Integrated channels secure cables for safer bedside setups and protect against wire damage.
Static Air Base
One third of each cell remains inflated for increased comfort and preventing “bottoming out”.
Side Wall Support
(KS models only) Adds stability and edge awareness for safer transfers enhancing comfort, balance, and confidence.
Pure Guard Cover, Hydro Lock Barrier
Easy to clean, 4-way stretch, vapour-permeable cover that reduces shear and blocks fluids, bacteria, and viruses. Hydro Lock barrier, a welded seam and liquid resistant zip flap prevent fluid penetration, protecting mattress integrity.
Very high-risk patients need pressure care that works continuously and predictably. E600 helps reduce sustained pressure on vulnerable areas, supporting comfort and skin protection during extended stays. By reducing the need for constant adjustment or intervention, it allows care teams to focus on the patient, not the mattress.
System Type: Full replacement alternating air mattress system with 20 transverse air cells.
Clinical Use: Very high-risk prevention and treatment of pressure injuries up to Stage 4, including patients in surgical recovery, with advanced frailty, or complex care needs.
Mattress Sizes: Single: 90 cm × 200 cm × 20 cm · King Single: 105 cm × 200 cm × 20 cm
Safe Working Load: Supports patients up to 180 kg
Construction: 20 TPU air cells with a 1-in-2 alternating air cell structure; static lower region in each cell (one-third static, two-thirds alternating) to reduce bottoming out; static head section for steady upper-body positioning; self-sealing connections for faster servicing.
Pressure Relief Features: Anti-shear surface that moves with the body to reduce tissue stress; dedicated heel protection zone for offloading vulnerable heels (bottom cells should be deflated to offload heels)
Safety Features: Twist CPR valve at the head end for rapid deflation; integrated cable tidy for safe cable management.
|
|
|
|
|
|
|---|---|---|---|---|
| Features |
E400
|
E500
|
E600
|
E700
|
| System Type | Hybrid (air-foam) | Alternating Hybrid (air-foam) | Alternating Air (1-in-2 cells) | Advanced Alternating Air (1-in-4 cells) |
| Use | Clinical | Clinical Pain Relief, Rehab, Palliative Care | High-risk Pressure, Surgical, Frailty | Complex Rehab, Spinal, ICU |
| Pressure Injury Stage | Stage 1-2 w/o pump, Stage 3-4 with pump | Stage 4 | Stage 4 | Stage 4 |
| Safe Load | 230 KG w/o pump, 250 Kg with pump | 230 KG | 180 KG | 180 KG |
| Sizes (cms) | S: 88 × 200 × 19.5 · KS: 107 × 200 × 19.5 | S: 88 × 200 × 19.5 · KS: 107 × 200 × 19.5 | S: 90 × 200 × 20 · KS: 105 × 200 × 20 | S: 90 × 200 × 20 · KS: 105 × 200 × 20 |
| Heel Relief Slope | ||||
| Heel Offload | ||||
| Static Head Support | ||||
| Elata Pump | EP10AU | EP20AU | EP10AU | EP20AU |
| Tiltsense™ | ||||
| Up to 12 hr Battery Backup | ||||
| CPR Valve | ||||
| Cable Tidy | ||||
| Profile Height | 19.5 CM | 19.5 CM | 20 CM | 20 CM |
E600 is most appropriate for high to very high-risk patients who require full alternating air therapy and treatment up to Stage 4 pressure injuries. It marks the transition from hybrid systems into dedicated alternating air support, providing active pressure redistribution for clients with significant immobility or established pressure injuries.
E600 features a complete 1-in-2 alternating air configuration designed to continuously offload pressure across the surface. Unlike hybrid systems, it delivers true immersion and cyclic pressure redistribution as standard, making it the foundation of advanced air therapy within the Elata range.
E600 pairs with compatible Elata pump EP10AU to power its full 1-in-2 alternating air cell configuration, delivering continuous cyclic pressure redistribution across the surface. The pump uses Elata ID™ for automatic setup, while AdaptiveMode™ adjusts pressure in response to patient movement, delivering consistent advanced therapy.
