Compatible Pump
Multi-modes, smart sensing, and backup power. The advanced alternating pump that never stops protecting.
Multi-modes, smart sensing, and backup power. The advanced alternating pump that never stops protecting.
AdaptiveMode™ redistributes pressure through controlled cycling, CLP (Constant Low Pressure) immerses the body gently for comfort, and Max Inflation provides a firm surface for repositioning and nursing procedures.
Unlike basic alternating systems, AdaptiveMode™ senses micro-changes in positioning and adapts its cycle for more even, predictable support. This helps reduce the “rocking” sensation, and enhances pressure offloading for those who need steady, higher-level care.
Experience support that thinks ahead. TiltSense™ responds automatically when the backrest rises, increasing sacral support to prevent bottoming out. As the user reclines, the system resets on its own to maintain effective therapy through every position change.
Elata PowerGuard™ keeps therapy running for up to twelve hours during outages, maintaining full operation before shifting into a low-power mode. If power is lost entirely, SafeHold™ stabilises mattress pressures and protects the client without any carer input.

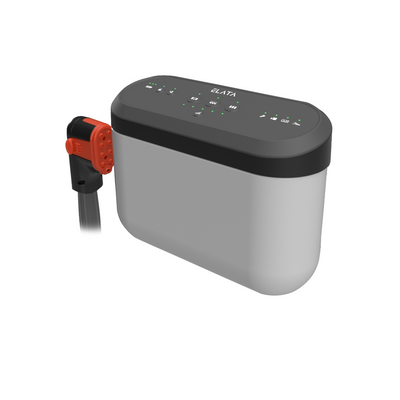

Engineered to run smoothly with minimal noise, the EP20AU reduces disturbance during rest. With intuitive controls, built-in alarms, and automatic lock, it ensures therapy is always consistent, secure, and easy for carers to manage.

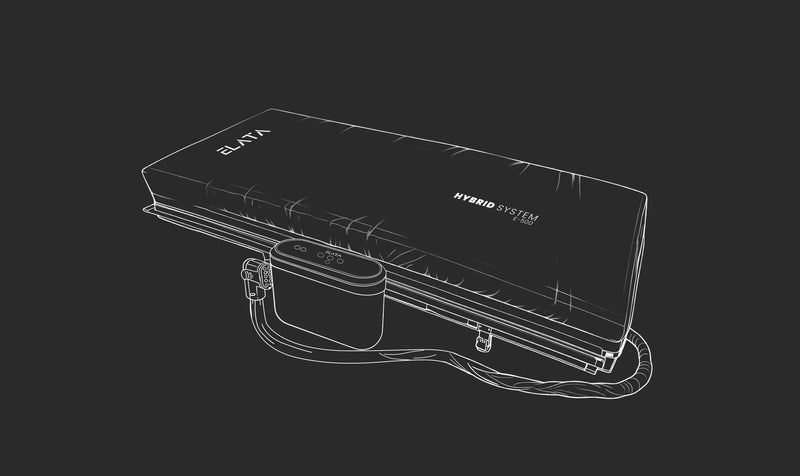

E500 is selected for patients who need active pressure relief to help manage discomfort and pain over extended periods in bed. Its hybrid design layers gentle surface comfort over responsive air therapy, reducing pressure build up while minimising the rigid feel often associated with clinical mattresses. With built-in battery backup and automatic posture response, E500 is trusted in environments where uninterrupted care, patient movement, and reliability matter most.
Dynamic alternating pressure with hybrid construction for high-risk clients requiring active therapy.

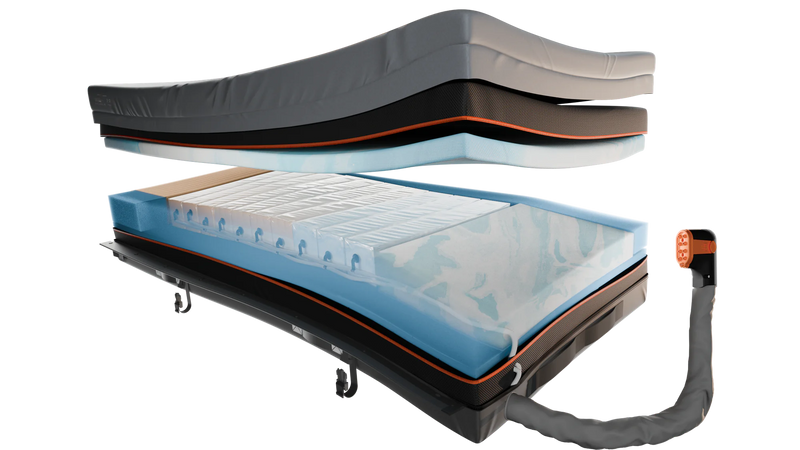

Core Foam
Three sections of transverse air cells with a profiled foam insert, encased in a waterproof TPU cover, reduce noise, block fluid ingress.
Side Wall Support
Adds stability and edge awareness for safer transfers enhancing comfort, balance and confidence.
Backrest Tilt Sensor
Auto-support with Elata TiltSense™
Stability Core Layer
Supportive base layer enhancing stability, comfort, and pressure redistribution.

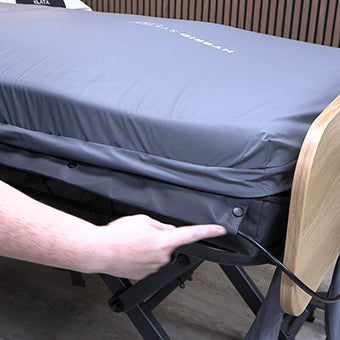

Cable Tidy
Integrated channels secure cables for safer bedside setups and protect against wire damage.
Accessible Handles
To ensure easy control / transport.
Heel Slope
Gel infused foam with gentle decline at the foot end reduces heel pressure and helps prevent injuries.
Rebound Core Foam
High rebound foam improves airflow and relieves pressure. Anti Shear top layer moves with the user to protect skin. Heel Offloading foldable foam suspends the heels to relieve pressure and prevent injuries.

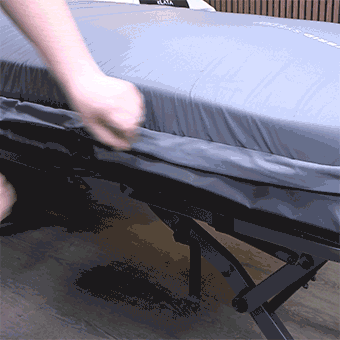

Pure Guard Cover, Hydro Lock Barrier
Easy to clean, 4-way stretch, vapour-permeable cover that reduces shear and blocks fluids, bacteria, and viruses. Hydro Lock barrier, a welded seam and liquid resistant zip flap prevent fluid penetration, protecting mattress integrity.
Pressure risk doesn’t pause when power, posture, or position changes. E500 ensures therapy continues through movement, elevation, and outages, helping protect vulnerable areas while maintaining comfort. Its integrated design reduces setup time, limits equipment changes, and supports consistent care delivery. The result is fewer disruptions, better protection, and confidence that therapy is working, day and night.

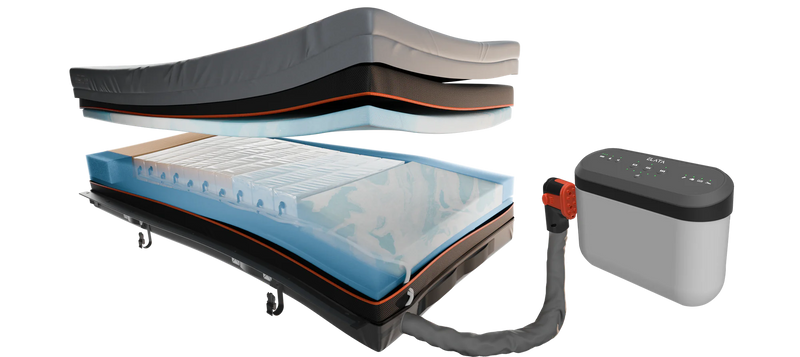

System Type: Hybrid foam–air mattress with paired air cells and profiled foam inserts, supported by a rebound foam layer for airflow and natural movement.
Clinical Use:
Cover Technology
Pressure Relief Features
|
|
|
|
|
|
|---|---|---|---|---|
| Features |
E400
|
E500
|
E600
|
E700
|
| System Type | Hybrid (air-foam) | Alternating Hybrid (air-foam) | Alternating Air (1-in-2 cells) | Advanced Alternating Air (1-in-4 cells) |
| Use | Clinical | Clinical Pain Relief, Rehab, Palliative Care | High-risk Pressure, Surgical, Frailty | Complex Rehab, Spinal, ICU |
| Pressure Injury Stage | Stage 1-2 w/o pump, Stage 3-4 with pump | Stage 4 | Stage 4 | Stage 4 |
| Safe Load | 230 KG w/o pump, 250 Kg with pump | 230 KG | 180 KG | 180 KG |
| Sizes | S: 88×200×19.5 · KS: 107×200×19.5 | S: 200×88×19.5 · KS: 200×107×19.5 | S: 200×90×20 · KS: 200×105×20 | S: 200×90×20 · KS: 200×105×20 |
| Heel Relief Slope | ||||
| Heel Offload | ||||
| Static Head Support | ||||
| Elata Pump | EP10AU | EP20AU | EP10AU | EP20AU |
| Tiltsense™ | ||||
| Up to 12 hr Battery Backup | ||||
| CPR Valve | ||||
| Cable Tidy | ||||
| Profile Height | 19.5 CM | 19.5 CM | 20 CM | 20 CM |
E500 is suited for high-risk clients, including those requiring treatment up to Stage 3–4 pressure injuries. It is ideal when consistent alternating therapy is required, but comfort and surface stability remain a priority.
E500 is selected when dynamic therapy is required as a standard level of care. While E400 offers hybrid flexibility and can be used with or without a pump, E500 is designed to operate with a pump at all times, delivering continuous alternating air support. When paired with the EP20AU pump, features such as Elata TiltSense™, variable comfort settings, and advanced pressure adjustment provide greater automation and control. E500 is suited to higher-risk patients who require consistent dynamic therapy with enhanced responsiveness and clinical oversight.
Yes. When paired with compatible Elata pump EP20AU, E500 can utilise features such as Elata ID™ for automatic setup, Elata AdaptiveMode™ for responsive pressure adjustment, Elata TiltSense™ for posture-based pressure changes, and Elata PowerGuard™ battery backup for uninterrupted therapy.
